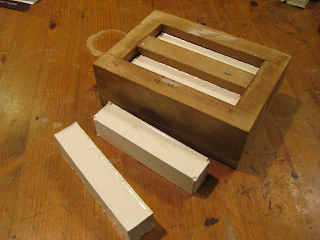

making the bearing blocks

z axis linear bearing block

motor and idler pulley arrangement

x axis motor plate



6mm aluminium

z bar

8mm ground steel bar (induction hardened)

z bar clamp

RAMPS v1.4 and some wiring

testing the z axis motor drive

20T driven pulley and spacers

13/10/2011

z motor and arduino mega

11/10/2011

z motor bracket

09/10/2011

z motor arrangement

 z belt tensioned by sliding motor bracket. uses 920mm belt

bracket for mounting electronics opposite motor

mechanical endstops



08/10/2011

testing the y axis

arduino uno and stepstick driver

test run ...

06/10/2011

y motor drive

the first idler pulley induces an uneven motion in the

timing belt as the teeth pass over the bearing.

need to replace it with a 10 tooth T5 pulley.

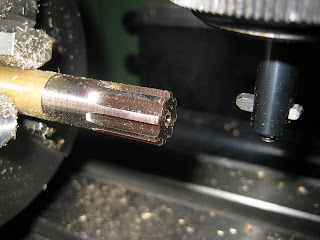

8T drive gear

y motor mount and new y bar clamps

mdf y bar clamps replaced with polyester resin

fine adjustment allows free movement for 4 linear bearings

29/09/2011

y motor bracket assembly

linear bearing blocks and leadscrew base

machined from cast polyester resin

23/09/2011

z leadscrew base

y chassis design

provision for 3 or 4 linear bearings

Frame

10/09/2011

09/09/2011
